Spring for Vibrating Screen
Identify the screen support spring against the equipment and operating requirements before ordering.
Equipment selection starts with your material, target separation and process conditions.
01
Information for matching the part
Spring type, dimensions, operating load and the machine support arrangement.
02
Specify a support component rather than appearance
The free dimensions of a spring do not fully describe its behaviour under load. A replacement assessment needs the machine support arrangement, operating load and relevant spring characteristics. Changing one support component without checking the complete arrangement can affect the machine’s position and movement. Installation and load-bearing work must follow the specific machine instructions.
- Free height, outside diameter and wire details where available
- Number and position of supports
- Operating environment and original part reference
TECHNICAL DATA
Models & specifications
| Model | Inner diameter D (mm) | Overall height L (mm) | Wire diameter d (mm) |
|---|---|---|---|
| Φ70×150×Φ8 | 70 | 150 | 8 |
| Φ70×150×Φ10 | 70 | 150 | 10 |
| Φ70×150×Φ12 | 70 | 150 | 12 |
| Φ70×180×Φ12 | 70 | 180 | 12 |
| Φ70×180×Φ14 | 70 | 180 | 14 |
| Φ70×180×Φ16 | 70 | 180 | 16 |
| Φ70×180×Φ18 | 70 | 180 | 18 |
| Φ76×150×Φ10 | 76 | 150 | 10 |
| Φ36×145×Φ4.5 | 36 | 145 | 4.5 |
| Φ36×145×Φ5.0 | 36 | 145 | 5 |
| Φ36×145×Φ5.5 | 36 | 145 | 5.5 |
| Φ36×145×Φ6.0 | 36 | 145 | 6 |
Dimensions identify catalogue parts; they are not a replacement for a load/stiffness and machine-support compatibility check.
A CLOSER LOOK
Equipment & Configuration Details

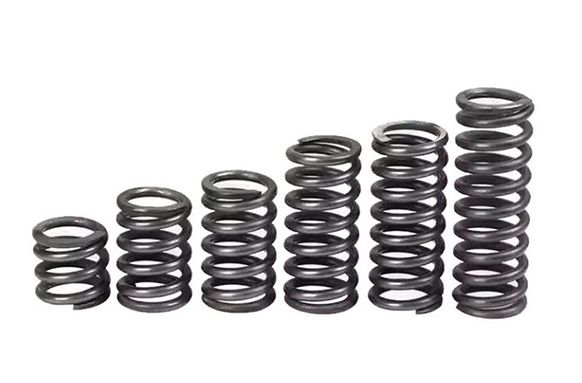

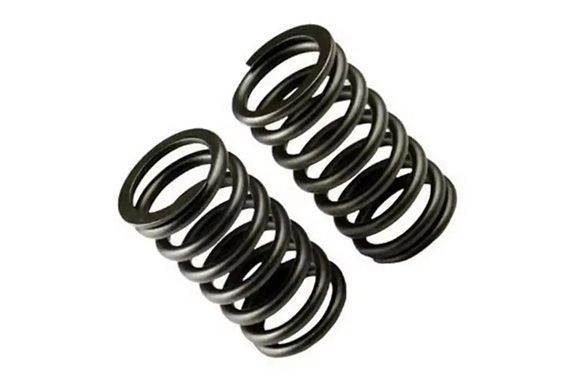

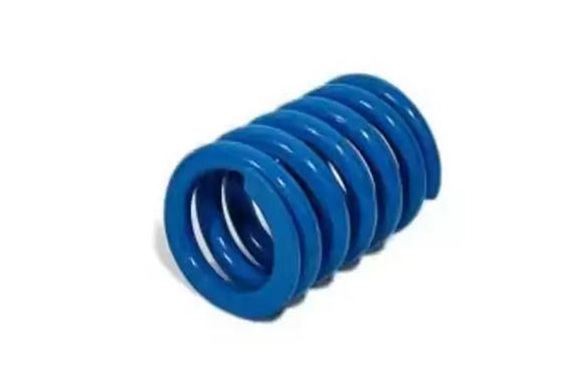

Spring for Vibrating Screen
