WSQ SERIES
WSQ Centrifugal Screener
A rotor-driven sifting arrangement for appropriate powder screening and separation tasks.
Equipment selection starts with your material, target separation and process conditions.
01
How the centrifugal sifting process works
A rotating assembly presents the material to a cylindrical screen. Product and oversize streams leave through separate outlets. Material behaviour and rotor/screen configuration must be matched.
02
Define the separation task
Discuss the sample and operating conditions before finalizing the configuration.
- Powder sifting
- Oversize separation
- Process-line integration
03
Check whether the rotor arrangement suits the feed
The centrifugal sifter brings material into contact with a cylindrical screen using a rotor arrangement. Examine the expected lumps, fibres, hard particles and abrasive contaminants before selecting it. A request to disperse soft agglomerates is different from a request to grind hard particles.
- State the nature and approximate proportion of oversize.
- Identify whether product texture or particle integrity must be preserved.
- Ask how the rotor and screen are accessed for inspection.
04
Map connections and changeovers
Discuss the feed arrangement, discharge routing and space needed to remove the screen or rotor. Confirm whether the process is gravity-fed or connected to another handling system; an enclosed housing alone does not establish pneumatic or pressure compatibility.
- Include upstream equipment and its feed behaviour in the layout.
- Describe cleaning between products and acceptable retained material.
- Request the actual screen construction and replacement method in the quotation.
CONFIGURATION REVIEW
Specify the machine for the task.
| Selection item | Information to confirm |
|---|---|
| Series and catalogue reference | WSQ Centrifugal Screener; match the proposed model to the table below. |
| Separation and screen arrangement | Define accepted/rejected fractions, aperture units and the deck arrangement for this duty. |
| Contact parts and interfaces | Agree screen medium, contact components, seals, connections and access. |
| Output and acceptance | Use defined material and quality conditions; catalogue dimensions do not guarantee output for every feed. |
Final technical values, dimensions and performance conditions are confirmed against the proposed equipment and application.
TECHNICAL DATA
Models & specifications
| Model | Listed construction-material options |
|---|---|
| WSQ18-85 | Q235A / SUS304 |
| WSQ30-85 | Q235A / SUS304 |
| WSQ50-100 | Q235A / SUS304 |
Specify the required aperture and screen medium with the enquiry. Construction-material availability depends on the supplied configuration.
A CLOSER LOOK
Equipment & Configuration Details

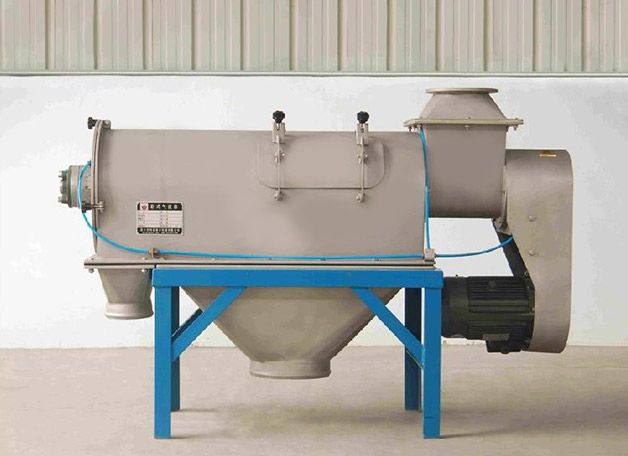

WSQ Centrifugal Screener
DISCUSS
YOUR TASK
Let's review the application.
Provide the material, separation target and process requirements so that the equipment configuration can be discussed.
