Vertical Vibration Motor
Identify the vertical vibration motor against the equipment and operating requirements before ordering.
Equipment selection starts with your material, target separation and process conditions.
01
Information for matching the part
Motor identification, flange/mounting dimensions, electrical supply and the screen model.
02
Check the vertical motor interface
A vertical vibration motor may use a flange interface that is not interchangeable with a foot-mounted motor. Provide the register, flange and bolt-circle dimensions together with the screen model. Access for removal and the relationship between the motor and screen body should be checked against a current drawing. An apparently similar housing is not evidence of compatibility.
- Flange and register dimensions
- Bolt pattern and overall clearance
- Motor identification and equipment model
TECHNICAL DATA
Models & specifications
| Model | Maximum excitation force (kN) | Speed (rpm) | Power (kW) | Current (A) | Flange note |
|---|---|---|---|---|---|
| YZUL-3-2 | 3 | 3000 | 0.25 | 0.62 | Upper flange |
| YZUL-5-2 | 5 | 3000 | 0.4 | 1.15 | Upper flange |
| YZUL-8-2 | 8 | 3000 | 0.55 | 1.45 | Upper flange |
| YZUL-10-2B | 10 | 3000 | 0.75 | 1.84 | Upper flange |
| YZUL-10-2A | 10 | 3000 | 1.1 | 2.3 | Upper flange |
| YZUL-20-2 | 20 | 3000 | 1.5 | 3.1 | Upper flange |
| YZUL-3-4 | 3 | 1500 | 0.18 | 0.6 | Upper flange |
| YZUL-5-4 | 4 | 1500 | 0.25 | 0.74 | Upper flange |
| YZUL-8-4 | 8 | 1500 | 0.55 | 1.5 | Upper flange |
| YZUL-10-4 | 10 | 1500 | 0.75 | 1.85 | Upper flange |
| YZUL-15-4 | 15 | 1500 | 1.1 | 2.58 | Upper flange |
| YZUL-30-4 | 30 | 1500 | 1.5 | 3.6 | Upper flange |
| YZUL-50-4 | 50 | 1500 | 2.2 | 5.1 | Middle flange |
| YZUL-3-6 | 3 | 1000 | 0.25 | 1.92 | Upper flange |
| YZUL-5-6 | 5 | 1000 | 0.37 | 1.22 | Upper flange |
| YZUL-10-6 | 10 | 1000 | 0.75 | 2.2 | Upper flange |
| YZUL-15-6 | 15 | 1000 | 1.1 | 3.1 | Upper flange |
| YZUL-20-6 | 20 | 1000 | 1.5 | 4 | Upper flange |
| YZUL-30-6 | 30 | 1000 | 2.2 | 5.6 | Middle flange |
Upper- and middle-flange arrangements appear in the legacy catalogue. Confirm the flange drawing for the selected model; the shortened table does not establish interchangeability.
A CLOSER LOOK
Equipment & Configuration Details

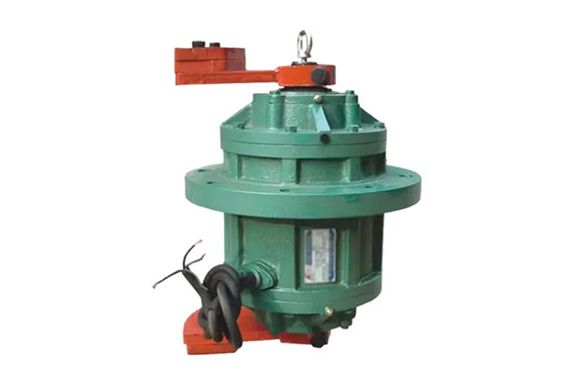

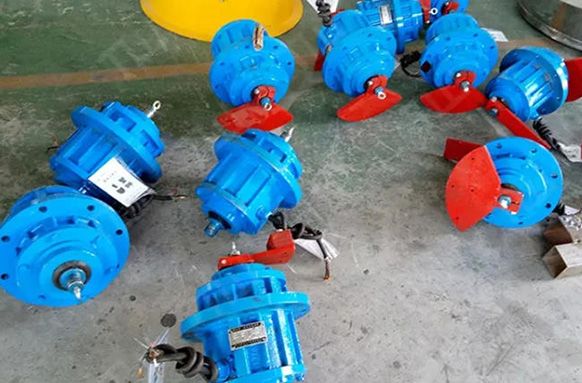

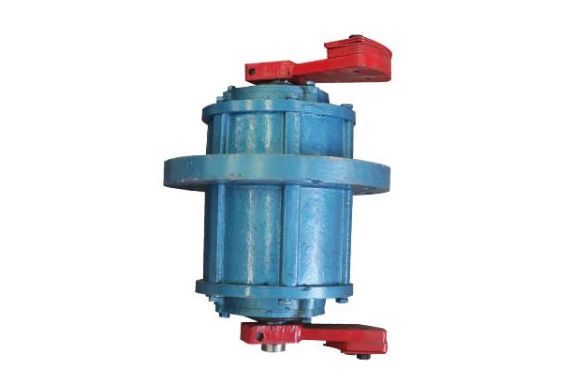

Vertical Vibration Motor
DISCUSS
YOUR TASK
Let's review the application.
Provide the material, separation target and process requirements so that the equipment configuration can be discussed.
