YZS Vibrating Motor for Screen
Identify the vibration motor against the equipment and operating requirements before ordering.
Equipment selection starts with your material, target separation and process conditions.
01
Information for matching the part
Motor model, mounting dimensions, power supply, operating duty and the machine it drives.
02
Match the mounting and excitation duty
A replacement vibration motor must be checked against the machine arrangement, not only the power on its nameplate. Record the mounting-hole spacing, shaft orientation and existing motor identification. Where a machine uses paired motors, their operating relationship needs the manufacturer’s instructions. Do not select or adjust eccentric weights using a generic web description.
- Existing motor nameplate and photographs
- Mounting drawing and rotation arrangement
- Supply voltage, frequency and any protection requirement
TECHNICAL DATA
Models & specifications
| Model | Excitation force (kN) | Power (kW) | Current (A) | Speed (r/min) | Weight (kg) |
|---|---|---|---|---|---|
| YZS-1.5-2 | 1.5 | 0.12 | 0.36 | 3000 | 13 |
| YZS-2.5-2 | 2.5 | 0.22 | 0.66 | 3000 | 14 |
| YZS-3-2 | 3 | 0.25 | 0.75 | 3000 | 20 |
| YZS-5-2 | 5 | 0.37 | 1.11 | 3000 | 21 |
| YZS-10-2 | 10 | 0.75 | 2.25 | 3000 | 31 |
| YZS-15-2 | 15 | 1.1 | 3.3 | 3000 | 47 |
| YZS-20-2 | 20 | 1.5 | 4.5 | 3000 | 68 |
| YZS-30-2 | 30 | 2.2 | 6.6 | 3000 | 107 |
| YZS-50-2 | 50 | 3.7 | 11.1 | 3000 | 210 |
| YZS-1.0-4 | 1 | 0.09 | 0.27 | 1500 | 13 |
| YZS-1.5-4 | 1.5 | 0.12 | 0.36 | 1500 | 16 |
| YZS-3-4 | 3 | 0.18 | 0.54 | 1500 | 22 |
| YZS-5-4 | 5 | 0.25 | 0.75 | 1500 | 32 |
| YZS-10-4 | 10 | 0.55 | 1.65 | 1500 | 49 |
| YZS-15-4 | 15 | 0.75 | 2.25 | 1500 | 76 |
| YZS-20-4 | 20 | 1.1 | 3.3 | 1500 | 82 |
| YZS-30-4 | 30 | 1.5 | 4.5 | 1500 | 117 |
| YZS-50-4 | 50 | 2.2 | 6.6 | 1500 | 219 |
| YZS-75-4 | 75 | 3.7 | 11.1 | 1500 | 360 |
| YZS-1.5-6 | 1.5 | 0.12 | 0.36 | 1000 | 22 |
| YZS-3-6 | 3 | 0.25 | 0.75 | 1000 | 35 |
| YZS-5-6 | 5 | 0.37 | 1.11 | 1000 | 50 |
| YZS-10-6 | 10 | 0.75 | 2.25 | 1000 | 82 |
| YZS-15-6 | 15 | 1.1 | 3.3 | 1000 | 125 |
| YZS-20-6 | 20 | 1.5 | 4.5 | 1000 | 130 |
| YZS-30-6 | 30 | 2.2 | 6.6 | 1000 | 190 |
| YZS-40-6 | 40 | 3 | 9 | 1000 | 190 |
| YZS-50-6 | 50 | 3.7 | 11.1 | 1000 | 300 |
| YZS-75-6 | 75 | 5.5 | 16.5 | 1000 | 400 |
| YZS-100-6 | 100 | 7.5 | 22.5 | 1000 | 420 |
| YZS-125-6 | 125 | 8.5 | 25.5 | 1000 | 468 |
Source electrical condition: 380 V, 50 Hz. Other supply conditions and mounting dimensions must match the actual selected motor.
A CLOSER LOOK
Equipment & Configuration Details

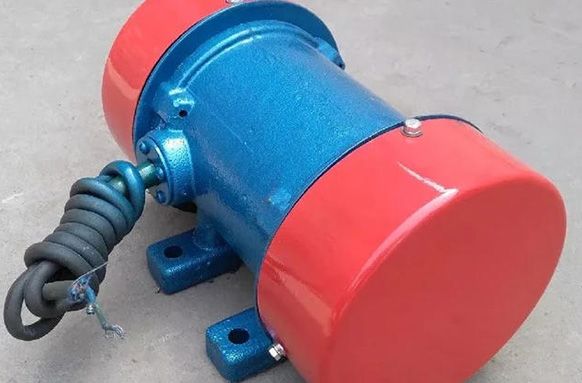

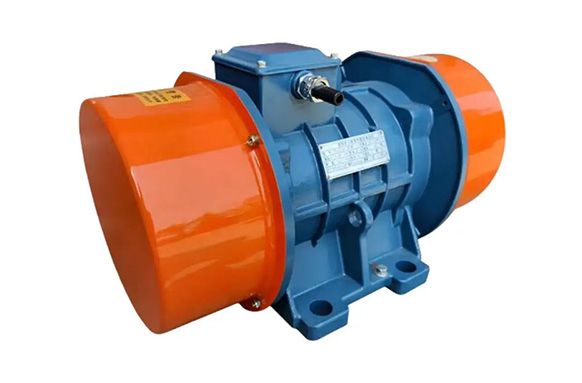

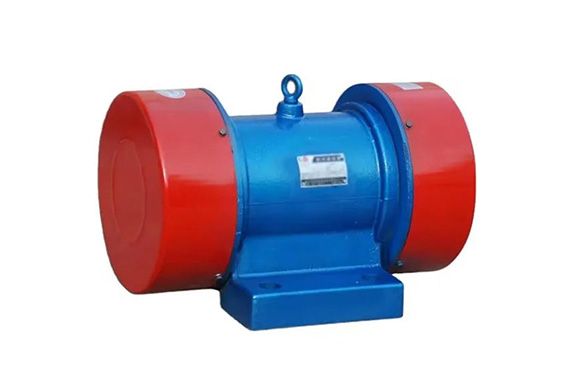

YZS Vibrating Motor for Screen
