Stainless Steel Screen Mesh
Identify the stainless steel screen mesh against the equipment and operating requirements before ordering.
Equipment selection starts with your material, target separation and process conditions.
01
Information for matching the part
Aperture, wire diameter, material grade, dimensions and tensioning/attachment arrangement.
02
Specify the actual screen opening
Mesh count, aperture and wire diameter describe different aspects of a woven screen. Provide the required opening and unit, material grade, overall dimensions and the way the mesh is supported or tensioned. A count-only order can result in a different opening when wire diameter changes. Do not substitute a universal mesh-to-micron chart for the intended specification.
- Aperture, wire diameter and weave if known
- Material grade and required dimensional standard
- Cut size, frame attachment and support details
TECHNICAL DATA
Models & specifications
| Mesh count (per inch) | Wire diameter (mm) | Aperture (mm) |
|---|---|---|
| 2 | 1.8 | 10.9 |
| 60 | 0.15 | 0.273 |
| 3 | 1.6 | 6.866 |
| 70 | 0.14 | 0.223 |
| 4 | 1.2 | 5.15 |
| 80 | 0.12 | 0.198 |
| 5 | 0.91 | 4.17 |
| 90 | 0.11 | 0.172 |
| 6 | 0.8 | 3.433 |
| 100 | 0.1 | 0.154 |
| 8 | 0.6 | 2.575 |
| 120 | 0.08 | 0.132 |
| 10 | 0.55 | 1.99 |
| 140 | 0.07 | 0.111 |
| 12 | 0.5 | 1.616 |
| 150 | 0.065 | 0.104 |
| 14 | 0.45 | 1.362 |
| 160 | 0.065 | 0.094 |
| 16 | 0.4 | 1.188 |
| 180 | 0.053 | 0.088 |
| 18 | 0.35 | 1.06 |
| 200 | 0.053 | 0.074 |
| 20 | 0.3 | 0.97 |
| 250 | 0.04 | 0.061 |
| 26 | 0.28 | 0.696 |
| 300 | 0.035 | 0.049 |
| 30 | 0.25 | 0.596 |
| 325 | 0.03 | 0.048 |
| 40 | 0.21 | 0.425 |
| 350 | 0.03 | 0.042 |
| 50 | 0.19 | 0.318 |
| 100 | 0.14 | 0.114 |
| 325 | 0.035 | 0.0443 |
| 120 | 0.1 | 0.111 |
| 350 | 0.032 | 0.0405 |
| 150 | 0.09 | 0.079 |
| 400 | 0.03 | 0.0335 |
| 180 | 0.07 | 0.071 |
| 450 | 0.026 | 0.0304 |
| 200 | 0.06 | 0.067 |
| 500 | 0.025 | 0.0258 |
| 250 | 0.045 | 0.0566 |
| 600 | 0.018 | 0.0243 |
| 300 | 0.04 | 0.0446 |
| 635 | 0.018 | 0.022 |
Each row is a particular mesh and wire combination from the catalogue, not a universal mesh-to-micron conversion. Alternate wire diameters can produce different apertures at the same mesh count.
A CLOSER LOOK
Equipment & Configuration Details

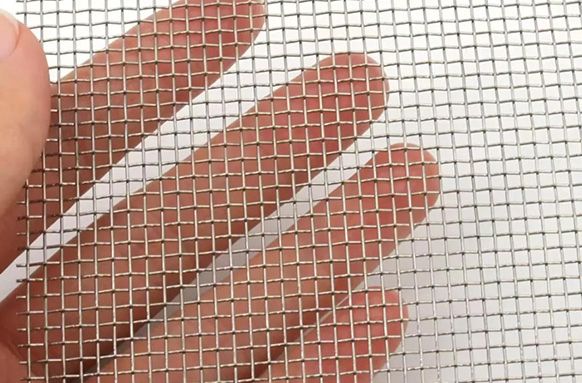

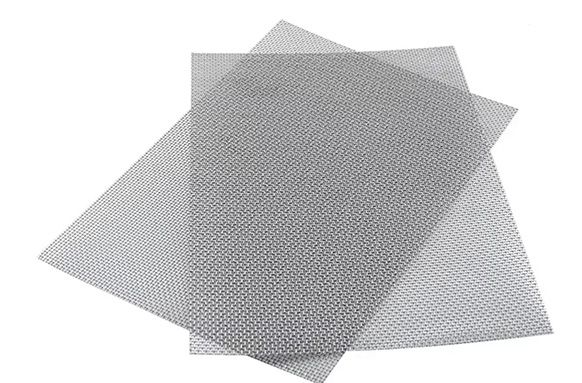

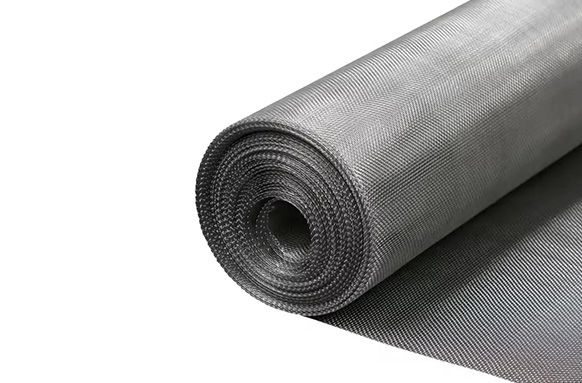

Stainless Steel Screen Mesh
